Self Containted Compactors
Bilt-Rite’s Self-Contained Compactors feature maximum compaction for wet wastes and commercial refuse.
Two Cubic Yard Packer-Head Models With Twin Cylinders:
Bilt-Rite’s Self-Contained Compactors feature maximum compaction for wet wastes and commercial refuse
Features:
Standard Features |
Options |
PLC Operated | |
Double-End Pick Up | Photoelectric Switch |
ON/OFF Key | ¾ Full Light |
Emergency Stop | Oil heaters |
Full Light | Tamper-Proof Weather Enclosure for Power Pak |
Cycle Timer | Single Cylinder Models |
Full Liquid Tight Rear Door Seal | Pressure Gauge |

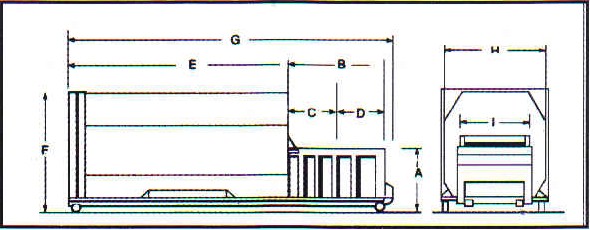

Dimensions:
Model Number |
Volume Capacity (Cubic Yards) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
B 151 |
15 |
52″ |
74″ |
44″ |
30″ |
120″ |
88″ |
194″ |
88″ |
63.5″ |
B 201 |
20 |
52″ |
74″ |
44″ |
30″ |
139″ |
105″ |
213″ |
88″ |
63.5″ |
B 301 |
30 |
52″ |
74″ |
44″ |
30″ |
187″ |
105″ |
261″ |
88″ |
63.5″ |
B 3218 |
32 |
Model Number |
Base Size (Cubic Yards) |
Clear Top Opening (D x W) |
RAM Face (w x h) |
RAM Penetration |
Cylinder Bore Rods(2) |
System Pressure |
Force Ratings |
Motor H.P. (hp) |
Pump Displacement (GPM) |
Cycle Time(Sec) |
B151 |
2 |
42″x58″ |
60×30 |
8″ |
4″, 2″ |
1750(N)1950(M) |
38,500(N) 42,900 |
10 |
8 |
45 |
B201 |
2 |
42″x58″ |
60×30 |
8″ |
4″, 2″ |
1750(N)1950(M) |
38,500(N)42,900 |
10 |
8 |
45 |
B301 |
2 |
42″x58″ |
60×30 |
8″ |
4″, 2″ |
1750(N)1950(M) |
38,500(N)42,900 |
10 |
8 |
45 |
B3218 |
2 |
42″x58″ |
60×30 |
18″ |
4″, 2″ |
1750(N)1950(M) |
38,500(N)42,900 |
15 |
9.5 |
55 |
B351 |
2 |
42″x58″ |
60×30< |
8″ |
4″, 2″ |
1750(N)1950(M) |
38,500(N)42,900 |
10 |
8 |
45 |
Single Cylinder Models |
available |
